Envirotech Syatems manufacturer of Fabric Wrapped Wood Fiber Acoustic Panel System provides best NRC value and aesthetically pleasing look for Wall and Ceiling. Wood Fiber Acoustic panel having Coard or Jute fabric finish for controlling the sound reverberation and echo. Envirotech Fabric acoustic Panels are high performance acoustical products with an exceptional visual appearance in Fabric texture. Fabric Acoustical panels come in a variety of configurations to meet all interior and acoustical requirements, provide full absorption through Wood Fiber subtracts. NRC System can be utilised as per choice of the Architect or acoustic consultants’ requirement. 50mm thick Rockwool 48kg/m3 density to increase sound absorption value as per Acoustic Consultant’s design.

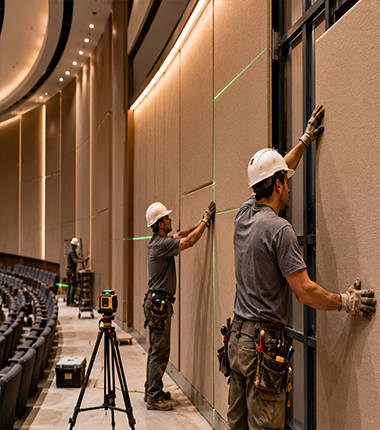

Fabric Wrapped Wood Fiber Acoustic Panels for Walls. Acoustical Wall Panelling with square edges made of 1 mm thick Wood fiber substrate with. Wood fiber panel having total 25mm thickness and wrapped on the front side with an acoustically transparent fabric with an option of colours as per the choice of the Architect/Acoustic consultant of size 600x600mm, 600x1200mm, providing a minimum sound absorption level of 0.90 NRC. Wood fiber panels having FR rating Class 1 and P. Installation of Acoustic Fabric panels can be done over H profile with NRC System of 50mm high GI Frame work infilled with 50mm thick Rockwool, H Profile can be drilled over GI frame work and then Fabric Panels slides through concealed groove as a final finish. Fabric Wrapped Acoustic Wall Panel fixing as per the instructions lay down by the manufacturer.

Technical Specification

• Fabric Wrapped Wood Fiber Acoustic Panels for Walls. Acoustical Wall Panelling with square edges made of 1 mm thick Wood fiber substrate. Wood fiber panel having total 25mm thickness and wrapped on the front side with an acoustically transparent fabric with an option of colours as per the choice of the Architect/Acoustic consultant of size 600x600mm, 600x1200mm, providing a minimum sound absorption level of 0.90 NRC. Wood fiber panels having FR rating Class 1 and P. Installation of Acoustic Fabric panels can be done over H profile with NRC System of 50mm high GI Frame work infilled with 50mm thick Rockwool, H Profile can be drilled over GI frame work and then Fabric Panels slides through concealed groove as a final finish. Fabric Wrapped Acoustic Wall Panel fixing as per the instructions lay down by the manufacturer.
• Thickness of the Panels 25/30/50mm or as per choice.
• Finish: Variety of shades. Having 10+ colour option available.

Technical Parameter: -

• Core- Wood Fiber
• Edge - Square
• Density- 400kg/m3
• NRC Value-0.90
• RH- 85
• Fire Rating- Class 1 & P
• Light Reflection- Colour Dependent

Application

Auditoriums, Conference Rooms, Office, Stodio, Cinema Halls, Theatres, Music Hall, Stadium, Lecture Hall, Library, Multi-function Hall, Hotels, Museums, Meeting Rooms, Business office and other public places.
